SMILE-S6-HV
6 kW
5 - 49.2 kWh

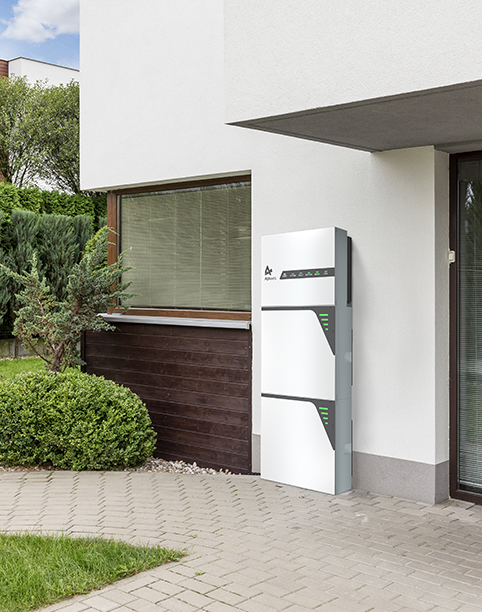

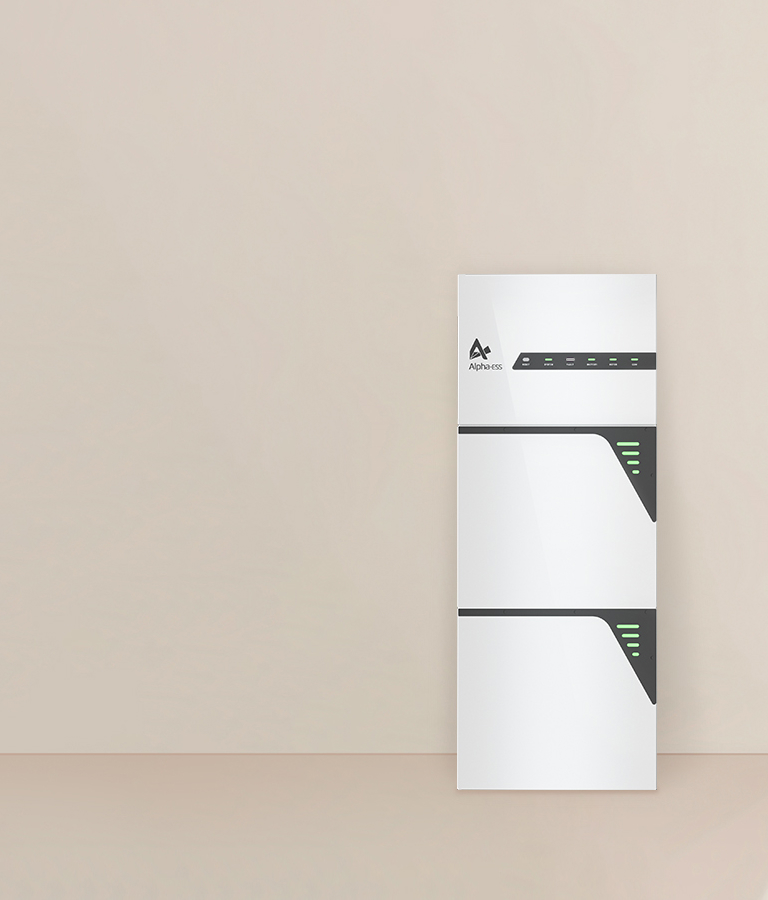

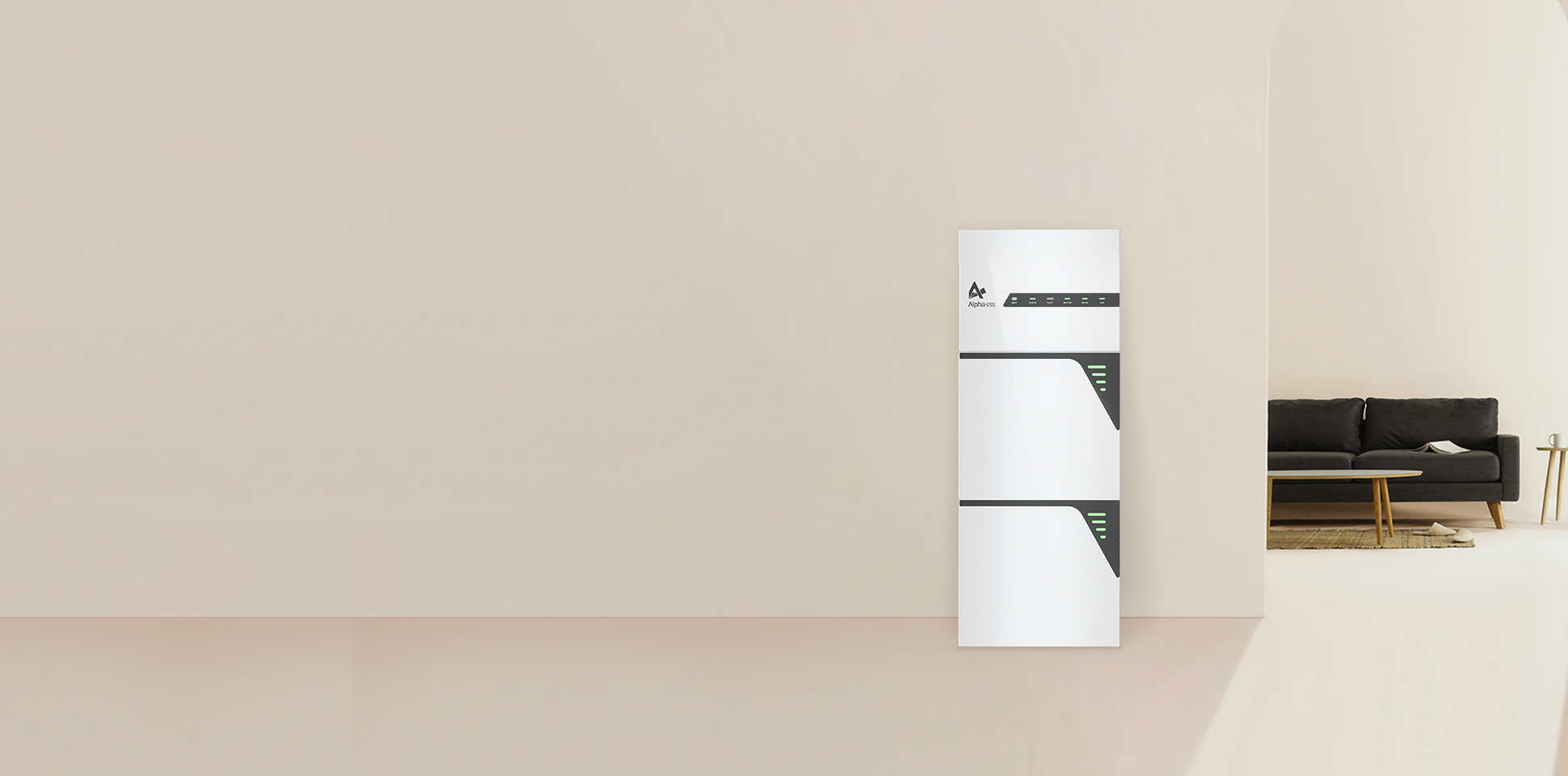

This is the 6kW energy storage system with high voltage battery module. This HV trooper is able to operate in full off-grid senario with full 6kVA backup.
-
Fully Off-grid Compatible
-
Full 6kVA Backup
-
VPP Ready
-
AFCI & Rapid Shutdown
-
High Efficiency Battery
SPECS
-
Max. AC Output Power
6 kW
-
Capacity Range
5- 49.2 kWh
-
Battery Chemistry
LFP (LiFePO4)
-
Max. Charging/Discharging Current
40 A
-
Depth of Discharge (DoD)
95%
-
Operating Temperature Range
-10 °C ~ 50 °C
-
IP Protection
IP65 / IP21
-
Warranty
5 Year Product Warranty,
10 Year Battery Warranty
BATTERY MODULES
Lego-style modular design, easy installation and expansion to meet different requirements.

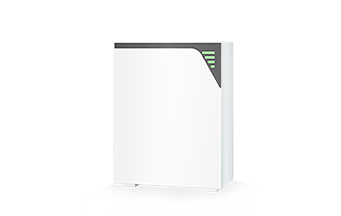

SMILE-BAT-8.2PH-P (Outdoor)
-
Module Capacity
8.2 kWh
-
Cycle Life
10 000
-
Expansion
1 ~ 6 in parallel

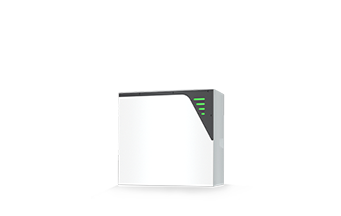

SMILE-BAT-8.2PH (Indoor)
-
Module Capacity
8.2 kWh
-
Cycle Life
10 000
-
Expansion
1 ~ 6 in parallel
